[WPF] 컨텍스트 메뉴와 트레이 아이콘
2020. 3. 10. 15:35ㆍIT/C# WPF
프로그램을 최소화하거나 닫기를 눌렀을 때, 프로그램이 꺼지지않고 트레이에 머무르도록 기능 구현.
<Window x:Class="WpfApp3.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:WpfApp3"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height=".3*"></RowDefinition>
<RowDefinition Height="*"></RowDefinition>
</Grid.RowDefinitions>
<StackPanel Grid.Row="0" Orientation="Horizontal" HorizontalAlignment="Right">
<Button Height="50" Width="200" Margin="5">의미없는버튼</Button>
<Button Height="50" Width="200" Margin="5">의미없는버튼</Button>
</StackPanel>
<Border Grid.Row="1" HorizontalAlignment="Center" VerticalAlignment="Center">
<TextBlock Text="테스트페이지입니다." FontSize="25" />
</Border>
</Grid>
</Window>
보여지는 뷰는 의미없는 버튼과 의미없는 텍스트로 이루어져있습니다.
이 부분은 참고 안하셔도 될 것 같습니다.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace WpfApp3
{
/// <summary>
/// MainWindow.xaml에 대한 상호 작용 논리
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
}
protected override void OnStateChanged(EventArgs e)
{
if (WindowState.Minimized.Equals(WindowState))
{
this.Hide();
}
base.OnStateChanged(e);
}
protected override void OnClosing(System.ComponentModel.CancelEventArgs e)
{
e.Cancel = true;
this.Hide();
base.OnClosing(e);
}
}
}
닫기와 최소화 버튼을 눌렀을 때, 프로그램을 끄지않고 숨겨지게하는 코드입니다.
추가로 컨텍스트메뉴와 트레이아이콘을 구현해보겠습니다.
System.Windows.Forms.NotifyIcon ni = new System.Windows.Forms.NotifyIcon();
private void Window_Loaded(object sender, RoutedEventArgs e)
{
try
{
System.Windows.Forms.ContextMenu menu = new System.Windows.Forms.ContextMenu();
//트레이아이콘 파일 경로 설정
StreamResourceInfo iconStream = Application.GetResourceStream(new Uri("pack://application:,,,/images/favicon.ico"));
ni.Icon = new System.Drawing.Icon(iconStream.Stream);
ni.Visible = true;
ni.DoubleClick += delegate (object senders, EventArgs args)
{
this.Show();
this.WindowState = WindowState.Normal;
};
ni.ContextMenu = menu;
ni.Text = "의미없는 프로그램";
System.Windows.Forms.MenuItem item1 = new System.Windows.Forms.MenuItem();
System.Windows.Forms.MenuItem item2 = new System.Windows.Forms.MenuItem();
menu.MenuItems.Add(item1);
menu.MenuItems.Add(item2);
item1.Index = 0;
item1.Text = "의미없는 프로그램 종료";
item1.Click += delegate (object click, EventArgs eClick)
{
System.Windows.Application.Current.Shutdown();
};
item2.Index = 0;
item2.Text = "의미없는 프로그램 열기";
item2.Click += delegate (object click, EventArgs eClick)
{
this.Show();
this.WindowState = WindowState.Normal;
};
}
catch
{
}
}

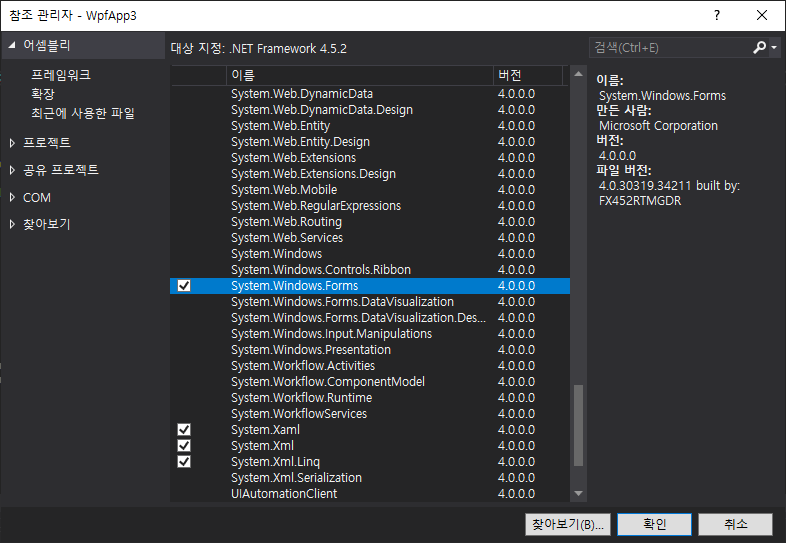

참조에 System.Windows.forms를 추가해주셔야합니다.
그 후에 메인윈도우에 한줄만 추가하시면 끝이 납니다.
public MainWindow()
{
InitializeComponent();
Loaded += Window_Loaded;
}
